WholesaleBackup Server Release (New Server Dashboard Graphs)

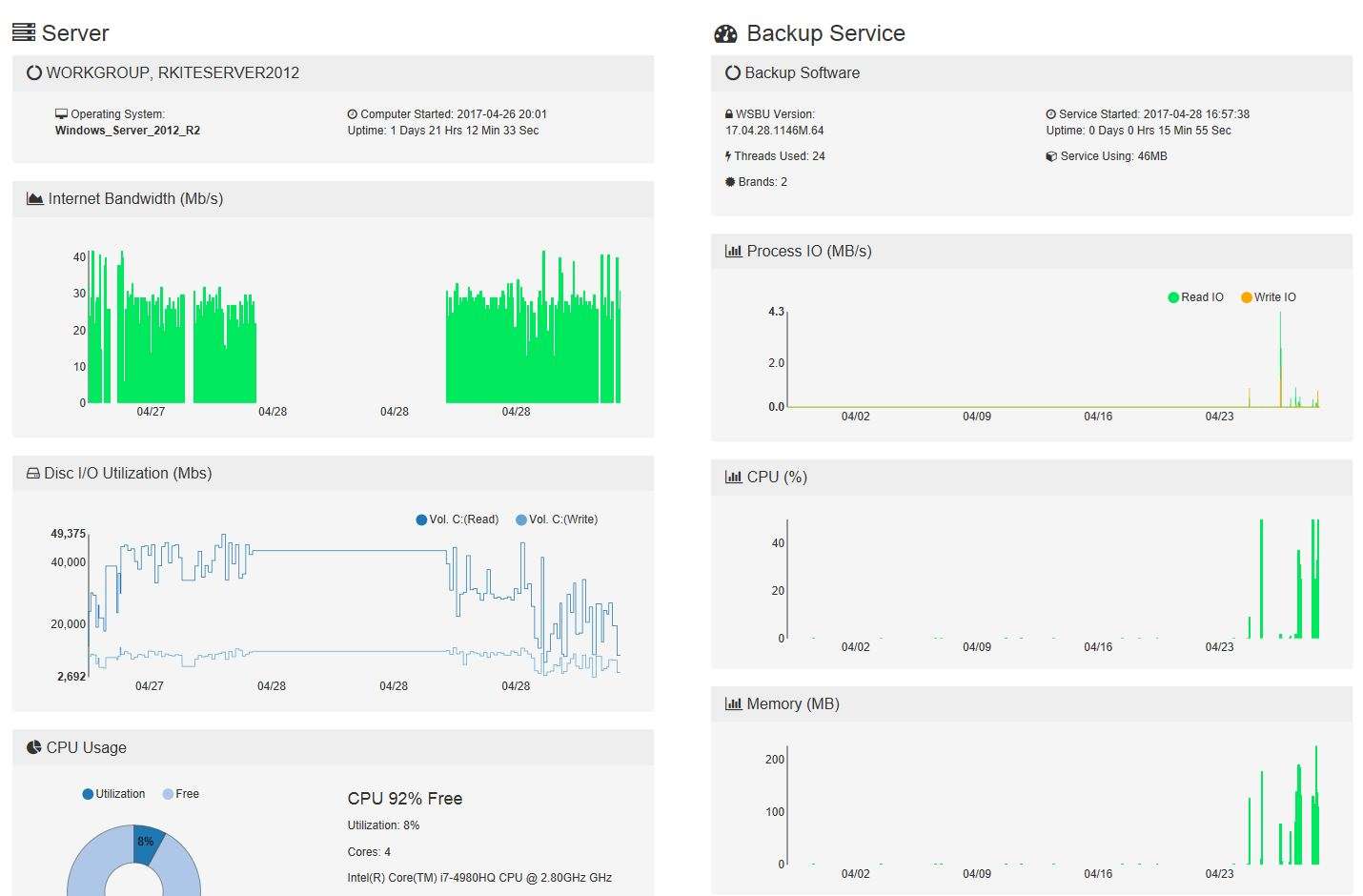

New features have been released for the WholesaleBackup Windows Servers, the update was packaged and released on 04.24.2017.new-server-dashboard-graphs-released

New Server (Dashboard) Tab

A new Server (dashboard) tab appears in the WholesaleBackup Server UI, providing sets of different graphs and metrics giving you a nice high level view of various server performance indicators and your backup service software data.

The new server dashboard makes use of modern approaches leveraging responsive design, HTML5, CSS3, JavaScript and Ajax, the data and graphs automatically scale and respond to best fit the size of the tab view port and is scalable.

Here is a breakdown of each new graph and what information you can glean from it.wholesalebackup-server-operating-system-uptime



The first panel under the Server category provides some general server identification information such as:

  • Server name
  • Operating system version
  • When the server was started
  • Current server uptime.

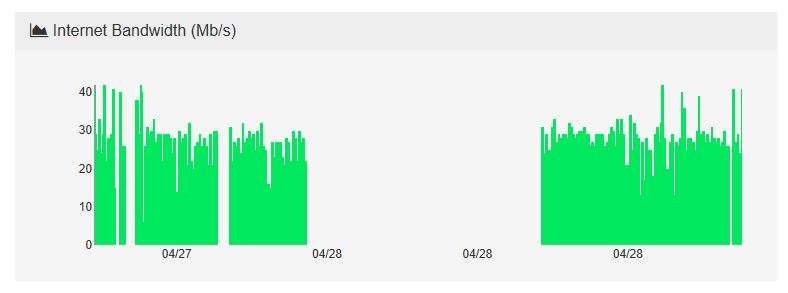

server-dashboard-internet-bandwidth-graph



The second panel under the Server category displays the Internet Bandwidth graph, presenting the last seven days of the server internet bandwidth utilization in Mb/s measured at ~10 minutes intervals, where you can monitor the highs and lows of the internet connection speeds the backup data is being transferred at. (For more details check on this topic checkout: Calculating how long backups will take | Sizing your internet pipe for online backups)

server-dashboard-disc-iops-graph

The third panel under the Server category displays the Disc I/O Utilization graph, this graph also presents the last seven days of data input/output (Disc IO)in Mbs information measured at ~10 minutes intervals. The Read and Write speeds for each volume or drive used for storing user backup data by the WholesaleBackup Server software is displayed on the graph. (More details on how disc speeds impact backup performance)

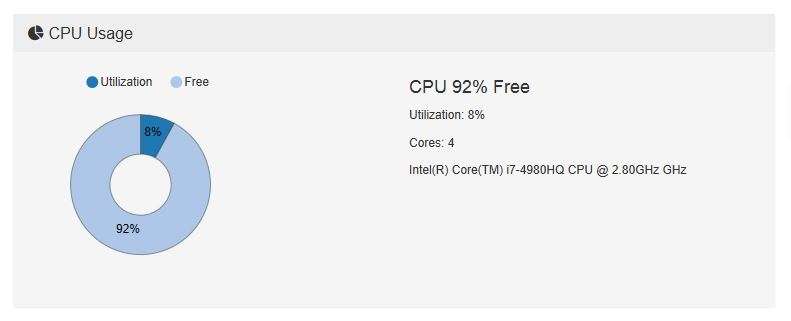

server-dashboard-cpu-usage-graph

The fourth panel under the Server category in the CPU Usage / information graph, indicating the current CPU utilization, CPU free, how many cores the CPU has, the processor speed (GHz), manufacturer, model and type.

server-dashboard-ram-usage-graph

The fifth panel under the Server category is the Physical Memory (RAM) graph, indicating Total RAM available, RAM used, Virtual memory available and Virtual memory used.

server-dashboard-account-summary-graph

The sixth panel under the Server category is the Accounts Summary graph, indicating the amount of accounts, computers, status of the accounts and how many computers are connected now.

server-dashboard-backup-service-software-panel

The first panel under the Backup Service category is the Backup Software information, presenting some general information such as the

  • WholesaleBackup Server version
  • Date the backup service was last started / uptime for the backup service
  • Amount of threads utilized by the backup software service
  • Amount of RAM the backup service is using
  • Total amount of brands hosted on this WholesaleBackup Server

server-dashboard-backup-service-software-process-io-graph

The second panel under the Backup Service category is the Process I/O graph, which contains I/O accounting information for a process or a job object. For a job object, the counters include all operations performed by all processes that have ever been associated with the job, in addition to all processes currently associated with the job. The backup software service shows data for the ReadOperationCount and WriteOperationCount for the last 4 weeks. (See Microsoft Source Reference)

server-dashboard-backup-service-cpu-usage-graph

The third panel under the Backup Service category is the CPU % (percentage) graph, indicating how much CPU utilization is being consumed by the backup service this graph keeps track of data for the last 4 weeks. The backup software does not rely on, or use much CPU, as Disc IO and Internet Bandwidth are at the two single most important factors impacting your backup service performance.

server-dashboard-backup-service-memory-ram-usage-graph

The fourth panel under the Backup Service category is the Memory (MB) graph, indicating how much memory is being consumed / utilized by the backup service software over the last 4 weeks. By design the Backup Server Software runs very light, not requiring much CPU or RAM resources as mentioned above Bandwidth and Disc IO are the most important metrics for fast backups.

server-dashboard-backup-service-connections-graph

The fifth panel under the Backup Service category is the Connections graph, the connections are recorded over the last 4 week period, each backup client makes multiple connections during the course of a backup.

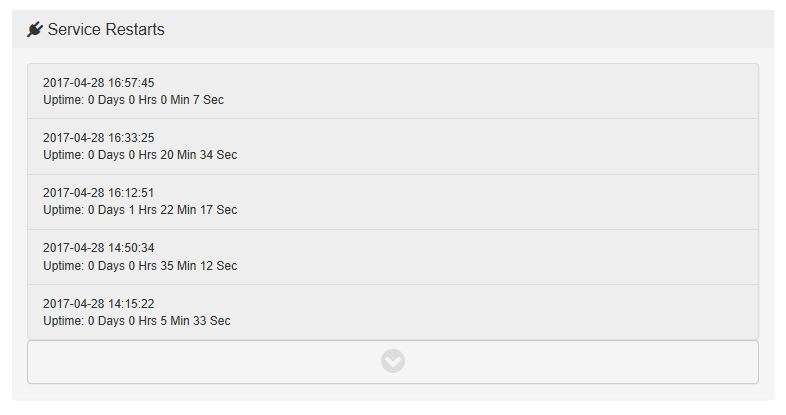

server-dashboard-backup-service-restarts-list

the last panel is the Service Restarts table, which keeps track when the backup service was restarting and how long it was running for (uptime).



Most hosted backup servers auto-upgrade when the software is restarted, or you can upgrade your WholesaleBackup hosted backup server right now if it is not already.

Have you had the chance to try it yet?

Feel free to install it and started testing some backups right now, it’s free!

Download the WholesaleBackup Windows Server Software
(for hosting your own backup service right now)
